Technical Drawing Paper 2, Nov/Dec. 2011
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 7



_____________________________________________________________________________________________________
Observation

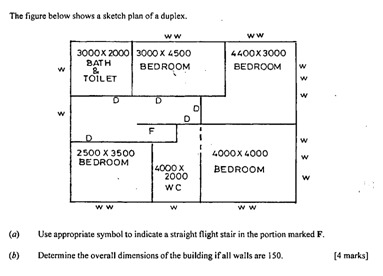

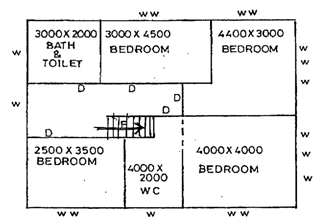

The part labelled F is a stair and the overall dimensions are 11000x10100 . To get the overall dimensions candidates must multiply the number of walls along the length by 150
and add the value to the sum of the room spaces along the length, and repeat the same step for the breadth.
