Technical Drawing Paper 2, Nov/Dec. 2013
Questions: 1 2 3 4 Main
General Comments
Weakness/Remedies
Strength



Question 3

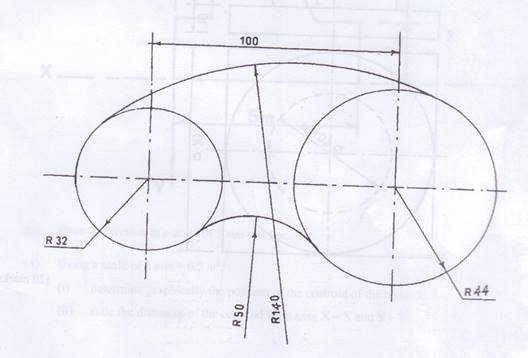

(a)       Construct the template shown below, full size, showing clearly the:

  1. points of the tangents;
  2. centres of the arcs.




(b)       construct the involute of a square of side 25.


_____________________________________________________________________________________________________
Observation


(a)       Candidates were expected to:

  1. draw the horizontal centre line and locate centres O1 and O2 100 apart;
  2. draw the vertical centre lines through O1 and O2;
  3. draw circles R32 and R44;
  4.  locate and indicate centre of upper arc (R108, R96) and draw the arc R;
  5. locate and indicate centre of lower arc (R82, R94)and draw the arc R50;
  6. indicate the points of tangency W, X, Y, Z;
  7. draw full size;
  8. draw neatly.

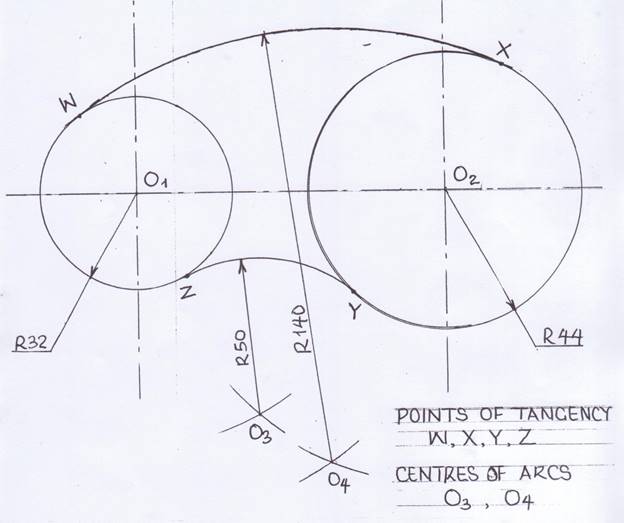

The solution is shown below.

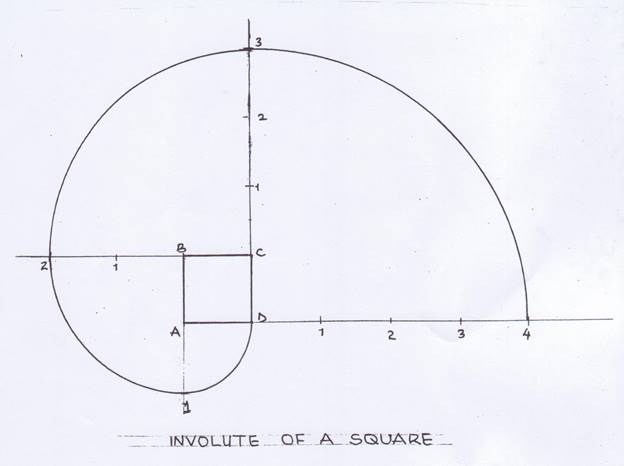

            (3)       (b)       Candidates were expected to:

  1. draw the square ABCE side 25;
  2. extend the sides at A, B, C, and D respectively;
  3. mark off A1 = 25, B2 = 50, C3 = 75 and D4 = 100

respectively on the extended lines;

  1. join points D, 1, 2, 3  and 4 into a smooth curve;
  2. draw neatly.



The solution is shown below.
