Technical Drawing Paper 2, Nov/Dec. 2013
Questions: 1 2 3 4 Main
General Comments
Weakness/Remedies
Strength



Question 4

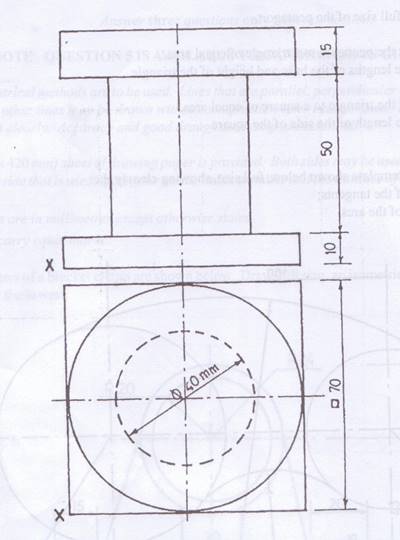

Two views of a block are shown in first angle below.  Draw, full size, the block making point X the lowest.




_____________________________________________________________________________________________________
Observation


Candidates were expected to:

  1. use isometric axes;
  2. make X the lowest point;
  3. use the isometric box full size (L = 70, W = 70, H = 75);
  4. draw the faces M, N, P, S, T and U;
  5. draw neatly.

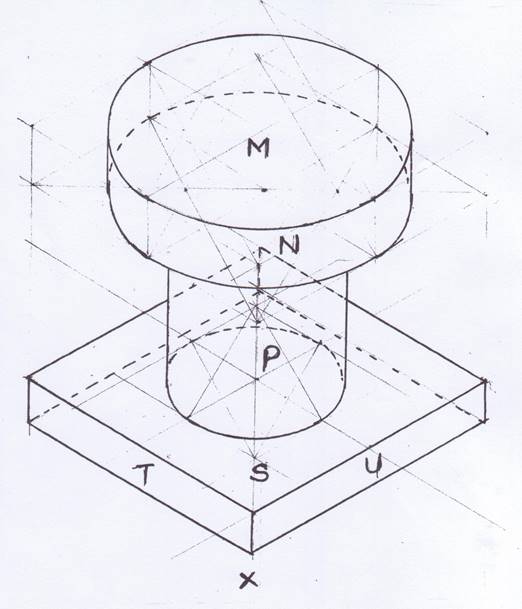

The solution is shown below.

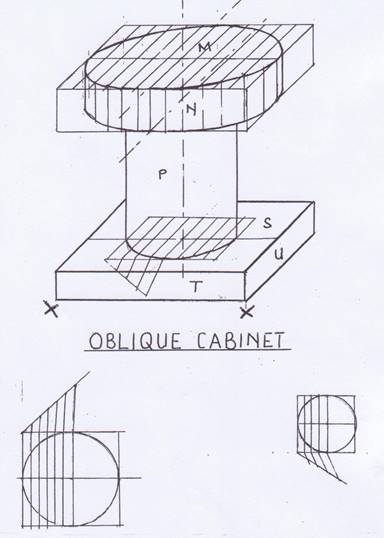

            ALTERNATIVE

            Candidates were expected to:

  1. use oblique axes;
  2. make X the lowest point;
  3. use the oblique box full size (L = 70, W = 35, H = 75);
  4. draw faces M, N, P, S, T and U;
  5. draw neatly.



The solution is shown below.

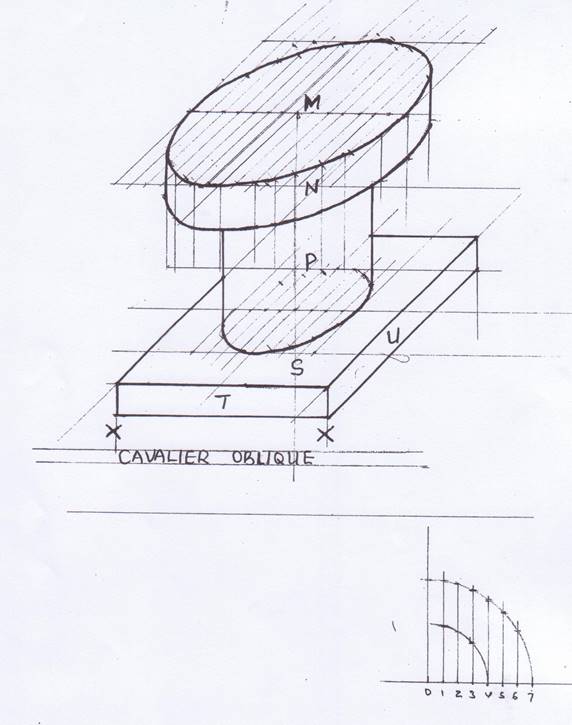

ALTERNATIVE
