Question 1

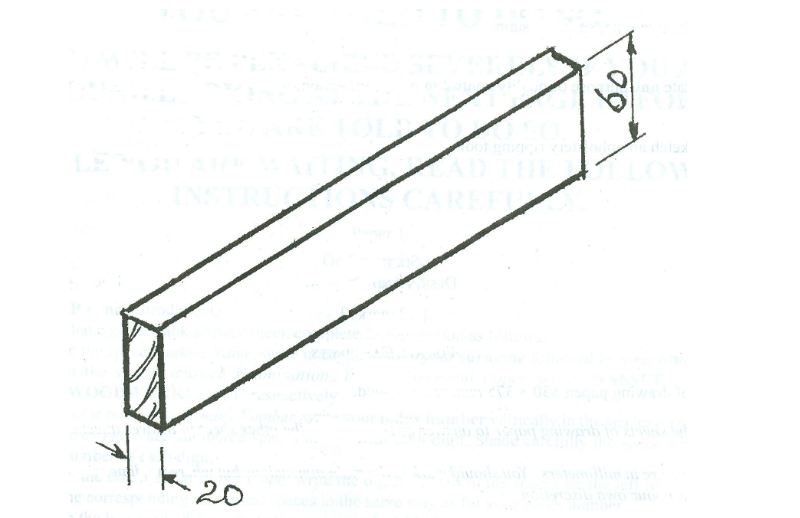

Figure 2: Dressed Stock
(1)
(a) The piece in Figure 2 is to be prepared using the following machines,
jointer, radial arm saw, thicknesser and rip saw. Use a line diagram to show the movement of the piece through the machines in the correct sequence.
(b) List four business opportunities in woodworking.
(c) Name two types of portable sander.
Observation
This question required the candidates to list in sequence the machine preparation of the given timber.
Most of the candidates performed poorly in this question. Candidates were expected to do the following:
(i) use a the diagram to show the movement of the piece through the machines in the correct sequence;
(ii) list four business opportunities in woodworking;
(iii) name two types of portable sander.

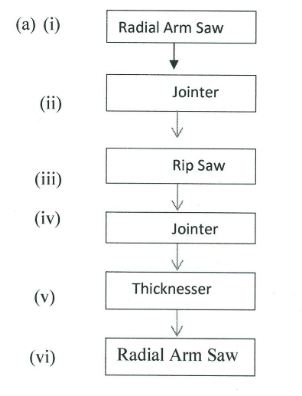

The solution is shown below:
(b) Business opportunities in woodworking:
- Furniture making;
- Woodwork teacher/instructor/trainer;
- Timber merchandising;
- Wood finishing;
- Wood ornament production/sculpture;
- Furniture designing;
- Wood contracts and supplies;
- Wood machining;
- Saw milling/tree felling/logging/lumbering;
- Carpentry and joinery work;
- Upholstery work.
(c) Types of portable sander
- disc sander;
- drum sander;
- belt sander;
- orbital sander.
