WoodWork 2, WASSCE (PC 2ND), 2022

Question 2



SECTION A

  1. (a)(i)   Make a pictorial sketch of a parting chisel.

(ii)  State one use of a parting chisel.

(b) List four types of spring used in upholstery.



Observation





The expected responses are:

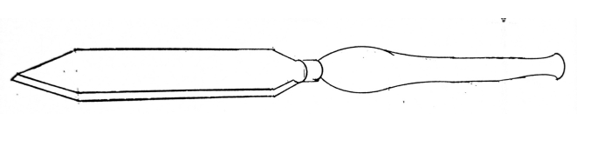

  • (i) PICTORIAL SKETCH OF A PARTING CHISEL



USE OF A PARTING CHISEL

  • To cutting narrow slot in the workpiece.
  • To turn tenons or grooves to a specific diameter for reference point.
  • To turn internal corners that are difficult to cut with a full round scraper.
  • To mark sharp boundaries on a workpiece.



  • TYPES OF SPRING USED IN UPHOLSTERY



  • Coil springs
  • Helical springs
  • Zig-zag/ no-zag spring
  • Conical spring
  • Compression spring
  • Tension spring
  • Sinuous spring
  • Sofa spring
  • Pirelli spring
  • Centre ring spring
  • Centre plate spring
  • Marshall spring
  • Drop in coil spring
  • Serpentine spring
