Technical Drawing Paper 2, May/June. 2011
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 3

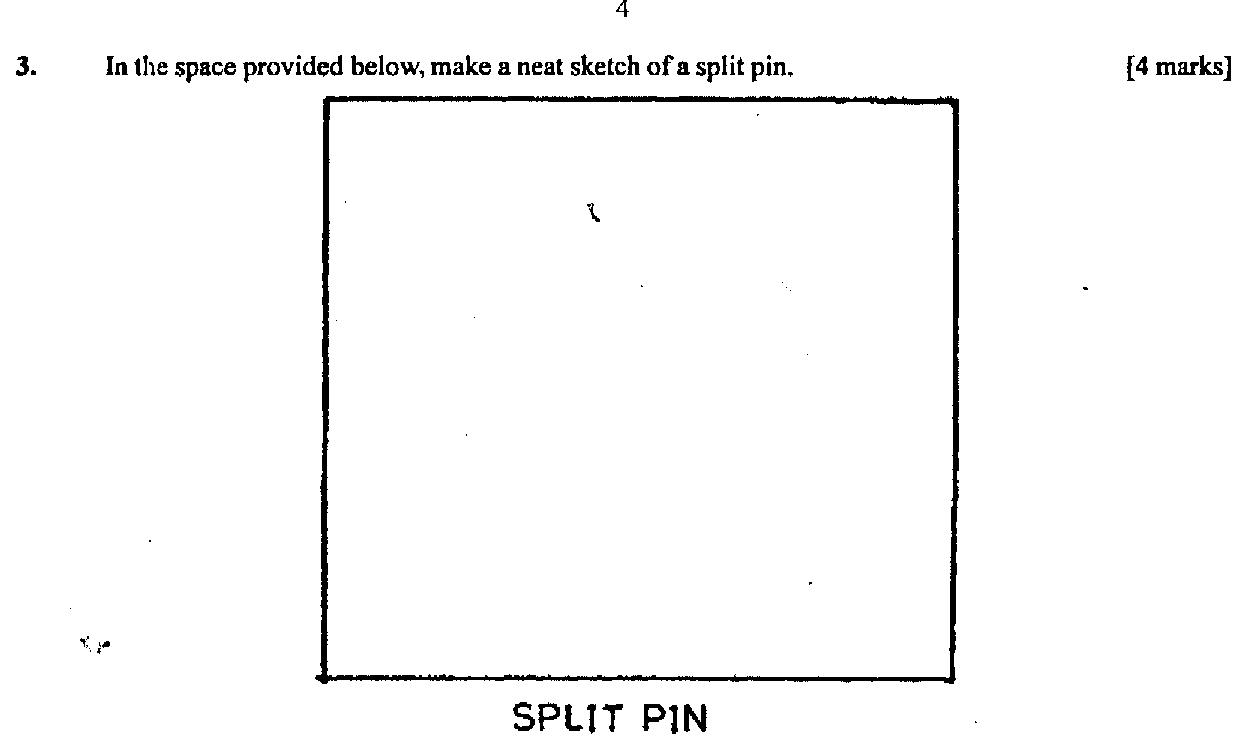

           In the space provided below, make a neat sketch of a split pin

Observation

            Freehand sketch requires a careful layout of lines with freehand. The
        figure drawn must be proportional and resemble the object required . See a freehand

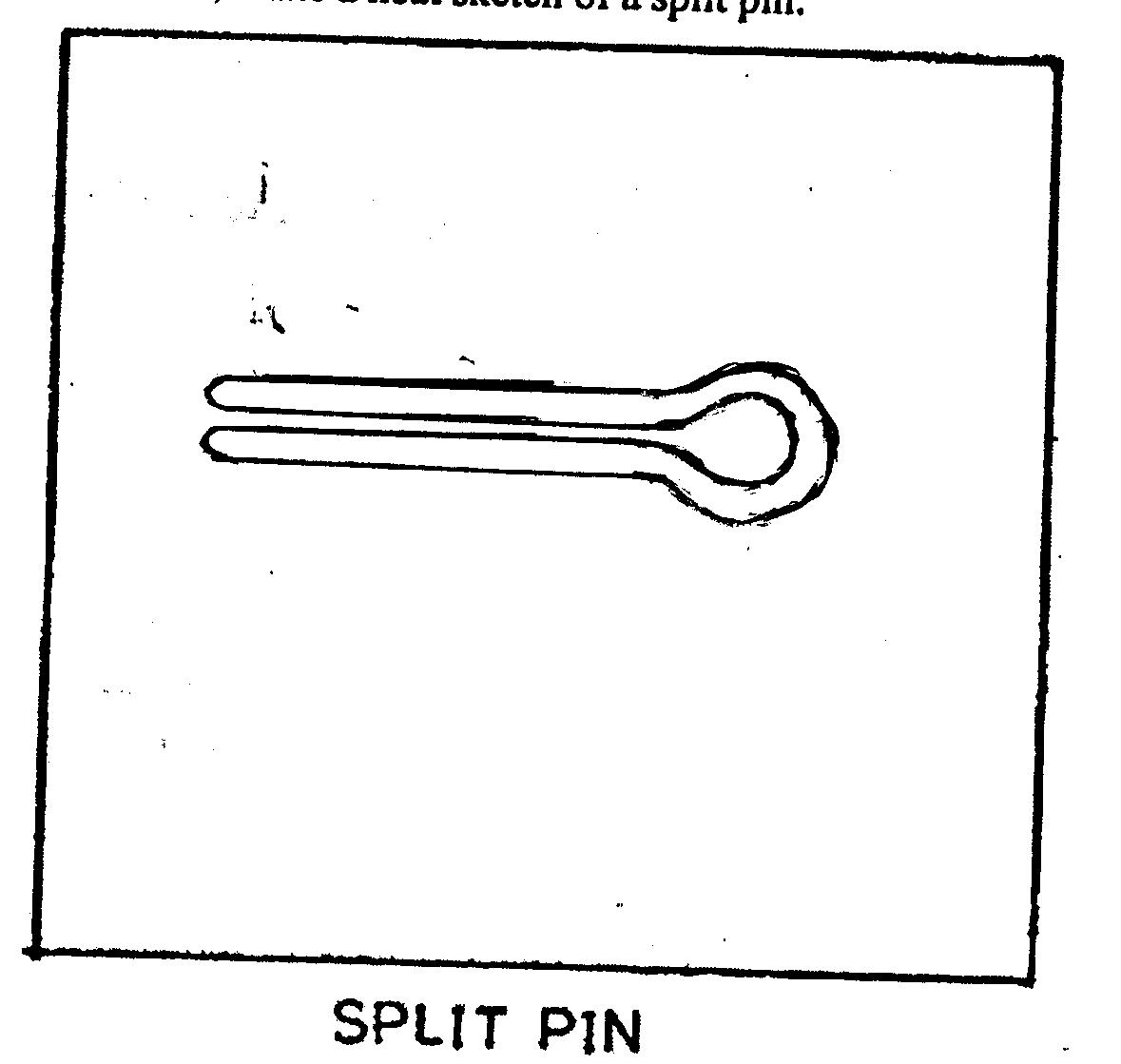

        projection of a split pin below.
