Section B
Answer one question only from this section either Building or Mechanical Drawing.

    Building Drawing

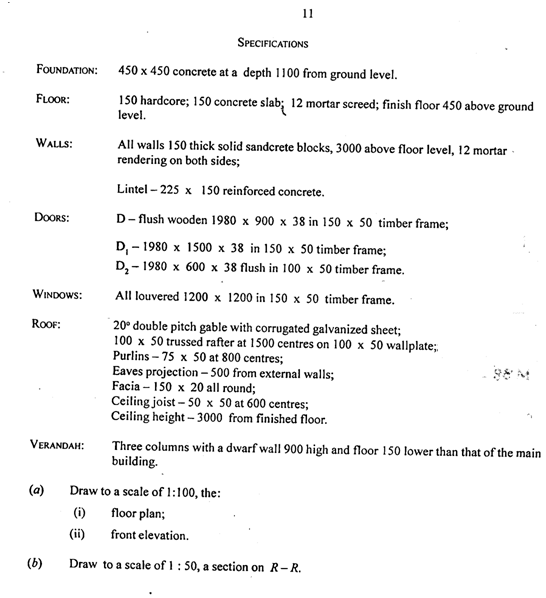

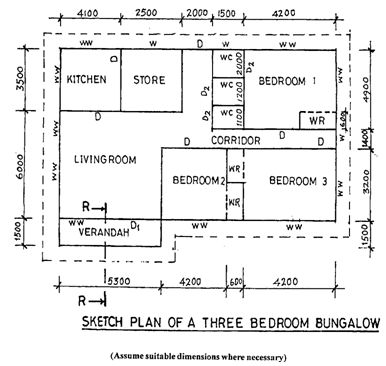

Study the sketch plan of a three bedroom bungalow below and the given specifications to  answer the questions that follow





_____________________________________________________________________________________________________
Observation

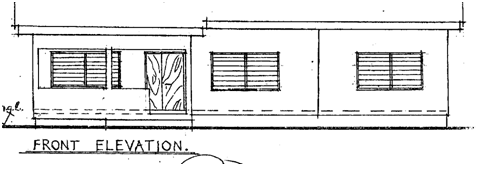

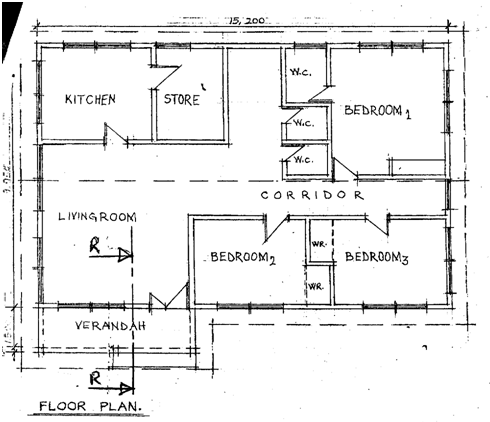

This is a practical question on building. Candidates were required to demonstrate  their skill in the use of lines, symbols, scales, dimensions, etc. A lot of visualisation was required  to represent the given plan and the required front elevation, side elevation and the sectional detail.  Working drawing requires a lot of  calculations and precise location of elements within the drawing. The required solutions are given below.
