Question 6

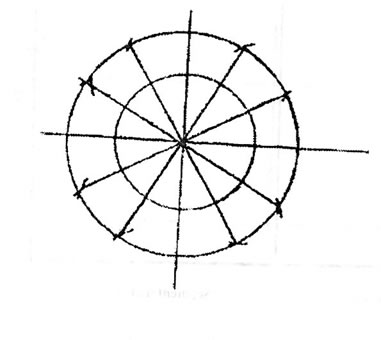

  1. Complete the construction of an ellipse started as shown below.

_____________________________________________________________________________________________________
Observation

Candidates were expected to:

  1. draw vertical lines on the bigger circle;
  2. draw horizontal lines on the smaller circle;
  3. indicate the points;
  4. join the points of intersection.

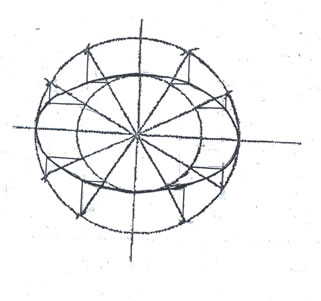

The solution is shown below
