Basic Electricity 2, WASSCE (PC 2ND), 2019

Question 3



Draw a wiring diagram of three lighting points with one switch controlling one lamp and another switch controlling two lamps where the connections are made using ceiling roses

Observation

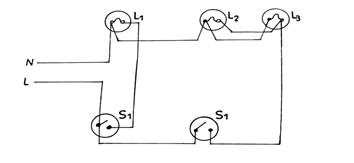

The expected response was:




Many of the candidates who attempted this question did not know how to draw the required connection.
