Basic Electricity 2, WASSCE (PC 2ND), 2019

Question 7



  1. Draw and label a three-phase star connected system.
  2.

  3. Using the answer in 7(a), show how power is supplied to a:

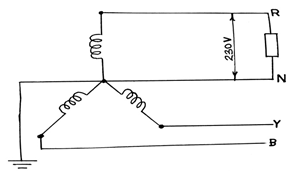

    1. Single-phase consumer;

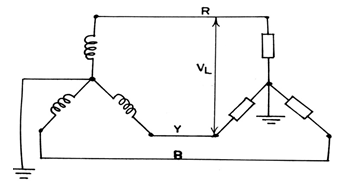

    2. Three-phase consumer.

Observation

The expected responses were:



  1. Labelled diagram of a three-phase star connected system
  2.

    1. Labelled diagram of a three-phase star connected system

    2. Labelled diagram of a three-phase star connected system

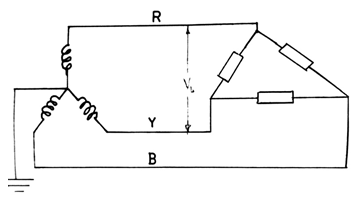

    3. OR

      Labelled diagram of a three-phase star connected system



Many candidates who attempted this question did the extension well, managed to list advantages but could not list the devices.
