Question 1

To a scale of 1: 50, draw a detailed section X – X of the building from foundation to roof.



_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

  1. use the appropriate conventional symbols to differentiate the hardcore filling from the earth filling;
  2. show the livingroom and bedroom in elevations;
  3. hatch the walls shown in section with lines inclined at 45⁰ to the horizontal.



However, they were unable to:

  1. produce the sectional drawing to the scale (1: 50) specified;
  2. show the mortar screed finish on the concrete floor slab;
  3. show the flush door in elevation;
  4. label the timber roof members.

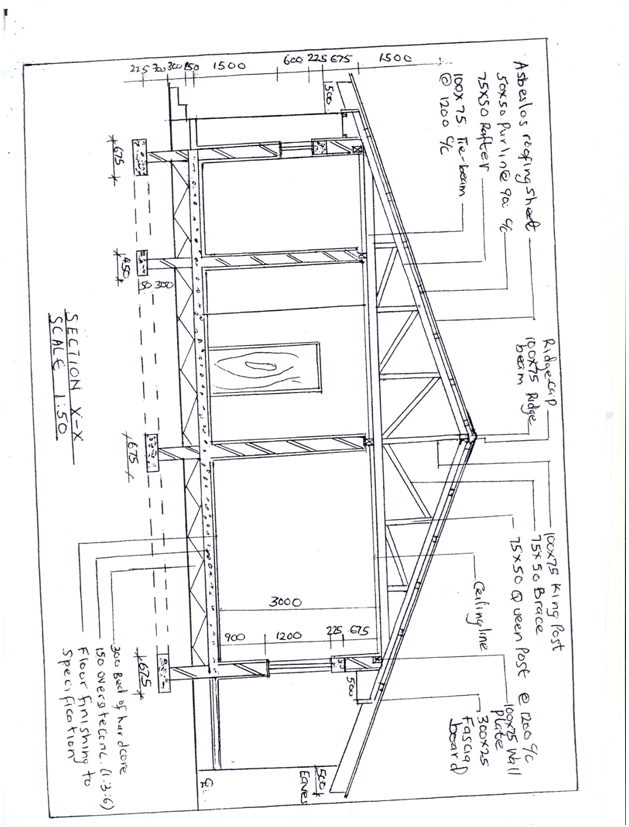

The expected response to question 1 is as given below:

sketch
