Building Construction Paper 1,Nov/Dec. 2011
Questions:   1 2 3 4   Main
General Comments
Weakness/Remedies
Strength
Specifications













Question 2

To a scale of 1: 100, draw the detailed floor plan of the building.


_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

  1. lay out the wall corners and junctions correctly;
  2. show the garage screen wall and ramp on the plan;
  3. use the appropriate conventional symbols to show the location of doors and windows.



However, some of them failed to:

  1. reproduce the floor plan to scale 1: 100 as specified;
  2. label and dimension their drawings;
  3. include the sectional line X – X;
  4. partition the windows into bays.

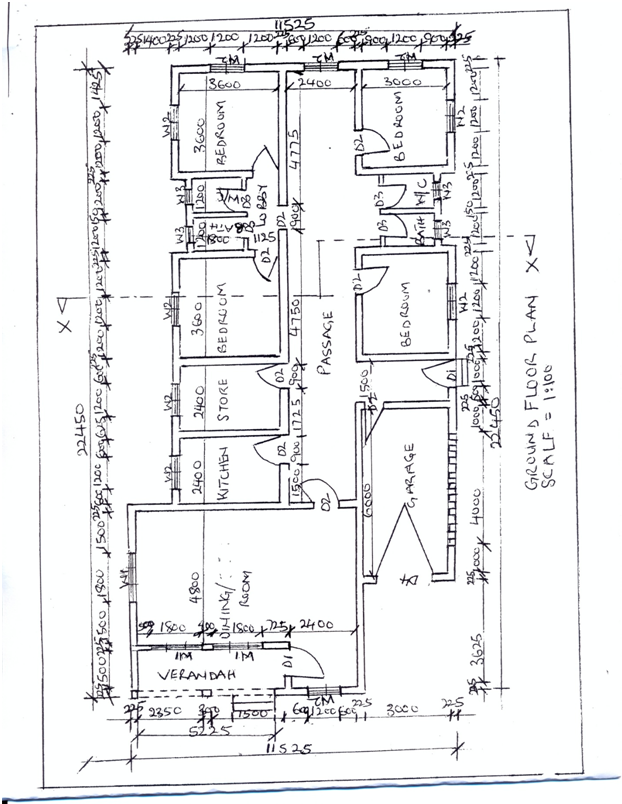

The expected response to question 2 is as given below:

sketch
