Building Construction Paper 1,Nov/Dec. 2011
Questions:   1 2 3 4   Main
General Comments
Weakness/Remedies
Strength
Specifications


















Question 3

To a scale of 1: 100, draw the following views of the building:

            (a)        front elevation;
            (b)        right side elevation.

_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

  1. show the garage roller shutter door with appropriate symbol;
  2. indicate the ramp to the garage;
  3. represent the screen wall panel correctly.



However, most of them were unable to:

  1. draw the elevations to the scale specified;
  2. distinguish the floor level from the ground level;
  3. construct the semi-circular arches correctly.

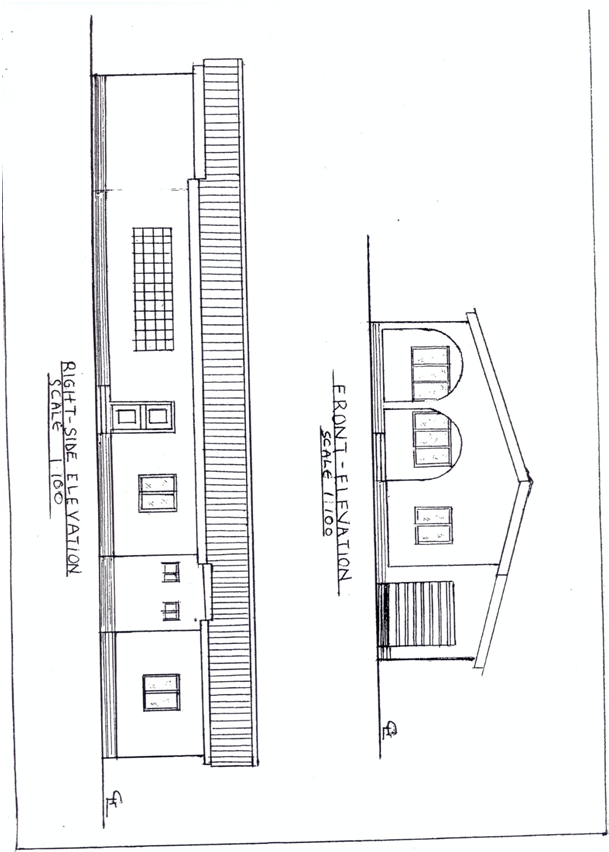

The expected response to question 3 is as given below:

sketch
