Building Construction Paper 2,Nov/Dec. 2013
"Build222nq1.html" class="style65">1
Questions:   2 3 4   Main
General Comments
Weakness/Remedies
Strength




Question 2

     Draw to a scale of 1:100, the detailed ground floor plan of the building

_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

            -           lay out the walls at corners and junctions;
            -           identify the various room spaces;
            -           show the doors and windows on plan with appropriate conventional symbols.

            However, many of them failed to:

            -           indicate the position of beams and columns;
-           show important features such as  ramp, threshold steps, stairwell, screen wall and sectional lines X – X and Y – Y.

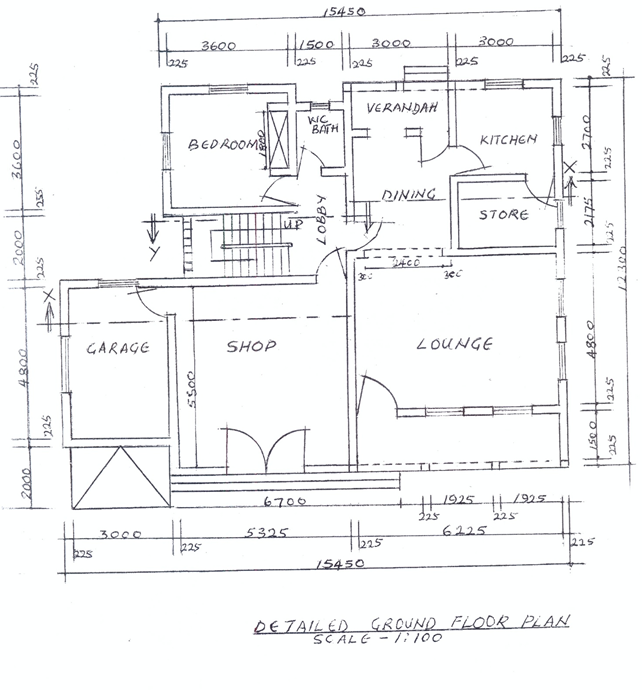

The detailed ground floor plan of the building is as shown on the next page.
