Building Construction Paper 2,Nov/Dec. 2013
"Build222nq1.html" class="style65">1
Questions:   2 3 4   Main
General Comments
Weakness/Remedies
Strength




Question 3

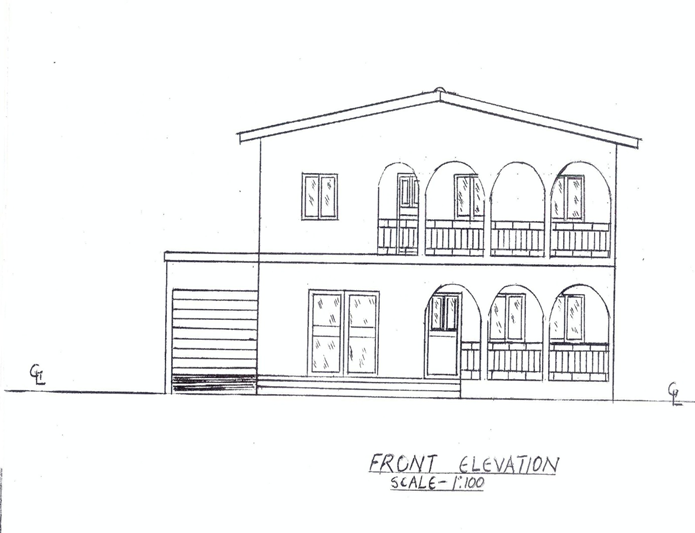

     To a scale of 1:100, draw the following views of the building:

  1. front elevation (North view);

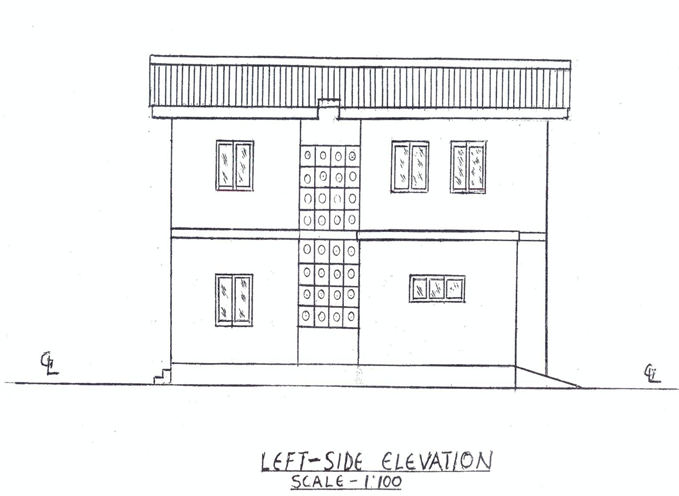

  2. left side elevation (West view).




_____________________________________________________________________________________________________
OBSERVATION

Some candidates were able to:

-           show the over-head roller shutter door, glazed metal doors and windows with
            appropriate symbols;
-           represent the roof barge boards and ridge cap in elevation.

However, majority of the candidates could not:

-           distinguish the ground level from the floor level;
-           construct (geometrically) the semi-circular arches;
-           draw the balustrades to the verandah and balconies;
-           show the recessed part of the wall and roof on the left-side view;
-           show the screen wall in section.

The respective front and right side elevations of the building are shown on the next page.
