Building Construction Paper 2,Nov/Dec. 2013
"Build222nq1.html" class="style65">1
Questions:   2 3 4   Main
General Comments
Weakness/Remedies
Strength




Question 4

  Draw to a scale of 1:25, the detail of section YY through the stairwell without showing the balustrade, from the ground floor slab to the first floor slab and indicate the following:


_____________________________________________________________________________________________________
OBSERVATION



























































 Few candidates attempted this question.  They were able to show:

-           the two sandcrete walls enclosing the staircase;
-           how the concrete landing slabs are built into the supporting walls.

However, some of the candidates failed to:

-           dimension their drawings;
-           produce the detailed drawing to the specified scale (1:25);
-           draw the stair flights with an even waist of 100mm as specified.

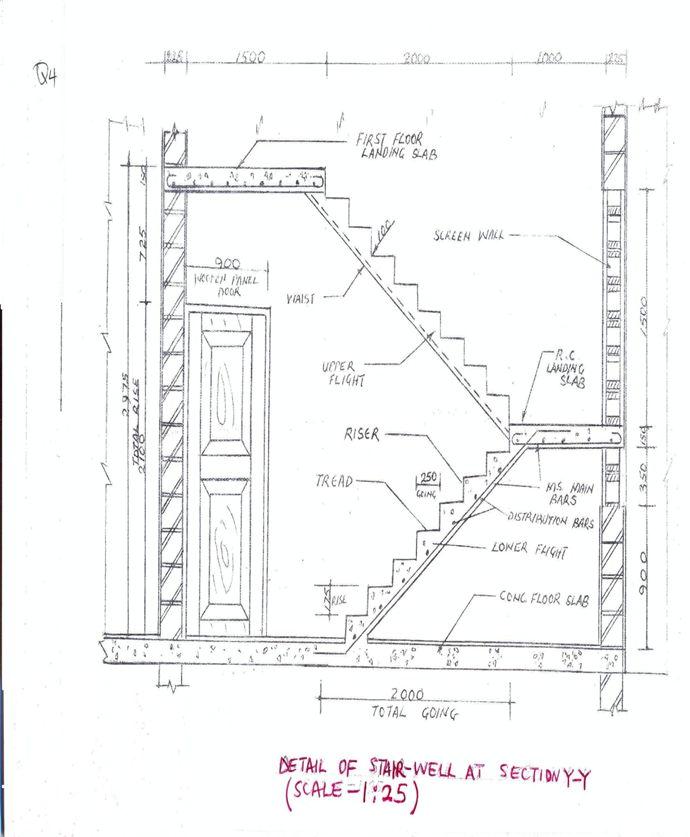

The detailed section Y – Y through the stairwell is as shown on the next page.
