building construction Paper 3 WASSCE (PC), 2017

Question 4

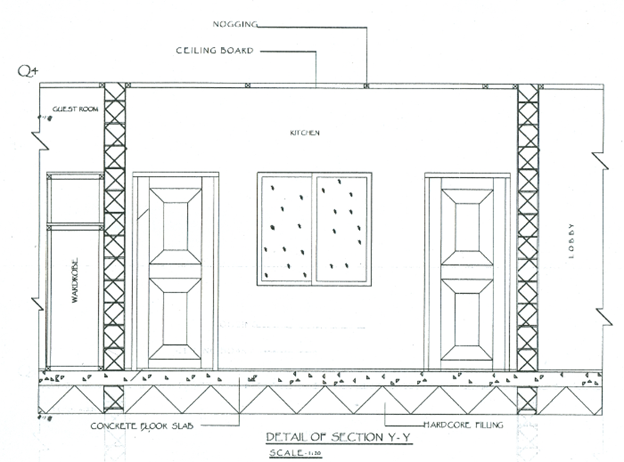

 Draw to a scale of 1:20, the detailed section Y-Y from hardcore to ceiling and indicate the following;

  1. concrete floor slab;
  2. noggings;
  3.  hardcore filling;
  4.  ceilling boards.

Observation



The candidates performed well by

     Draw to a scale of 1:20, the detailed section Y-Y from hardcore to ceiling and indicate the following;

    1. concrete floor slab;
    2. noggings;
    3.  hardcore filling;
    4.  ceilling boards.
