building construction Paper 3 WASSCE (PC 2ND), 2018

Question 2





Draw to a scale of 1:100, the detailed first floor plan.



Observation





The majority of them succeeded in:


- laying-outboth the external and internal walls properly;
- identifying various rooms spaces the building correctly;.
- positioning the doors and wardrobe at appropriate location within the building.



However, some of them failed to:


- dimension their drawings;
- show the screen wall enclosing the staircase;
- include the sectional line X – X and Y- Y;
- indicate the drawing tittle.

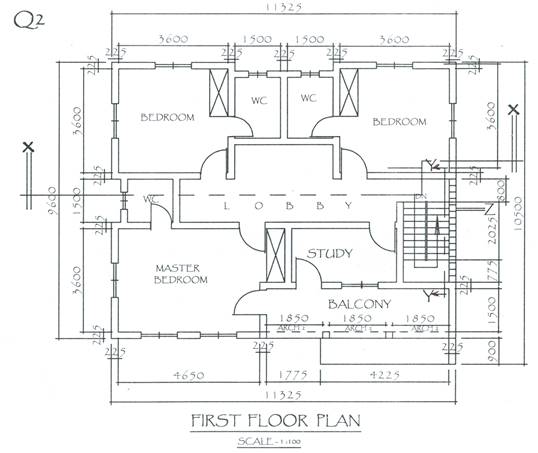

The expected response to question 2 is as given below
