building construction Paper 3 WASSCE (PC 2ND), 2018

Question 3



Draw to a scale of 1:100, the front elevation of the building.

Observation





The candidates did well by;



  • Distinguishing the ground level from the floor level;
  • Showing the threashold steps to the entrance porch;
  • Positioning the doors and windows correctly.

Most of the candidates failed to:
- show the correct door and window types;
- construct geometrically, the semi-circular arch;
- show the balustrades at the porch and balcony.

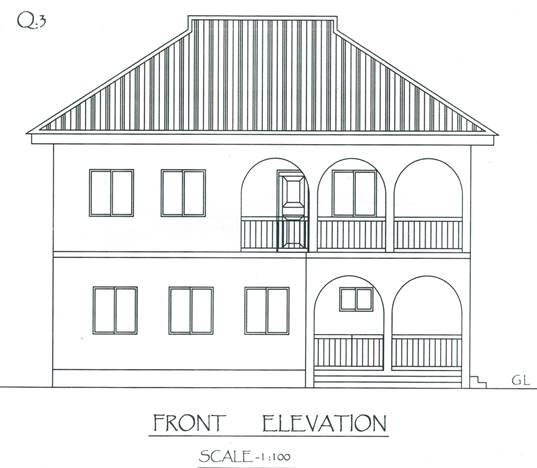

The expected response to question 3 is as given below:
