building construction Paper 3 WASSCE (SC), 2017

Question 2



To a scale of 1:100, draw the detailed ground floor plan of the building.
They performed well by:
-           having the walls on plan properly laid-out at corners and junctions;
-           labelling correctly, the various room spaces on the floor plan.
-           indicating on the stair plan, direction of traffic or ascent corrrectly.










Observation



ffic or ascent corrrectly.
However, many of them failed to:

-           properly laid-out walls on plan at corners and junctions;
-           dimension the drawing;
-           indicate correctly, the positions of columns and beams;
-           include the sectional line X – X and Y – Y as shown on the line diagram.

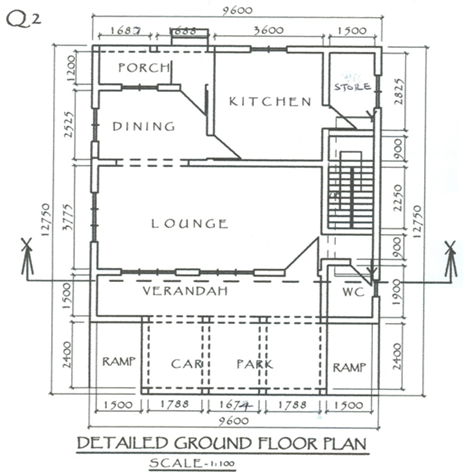

The expected response to question 2 is as given below:
