building construction Paper 3 WASSCE (SC), 2018

Question 3



Draw to  a scale of 1:100, front elevation of the building:

Observation



The candidates did well by;

  • showing correctly the type and locations of doors and windows;
  • indicating the first floor slab line;
  • representing properly, the roofs ridge – cap, fascia boards and covering.

However, a god number of  them could not:
-          distinguish the finish ground level from the floor level;
-           show the elevation correctly, the ramps to the car park;
-           show the car park concrete roof and the first floor balcony.

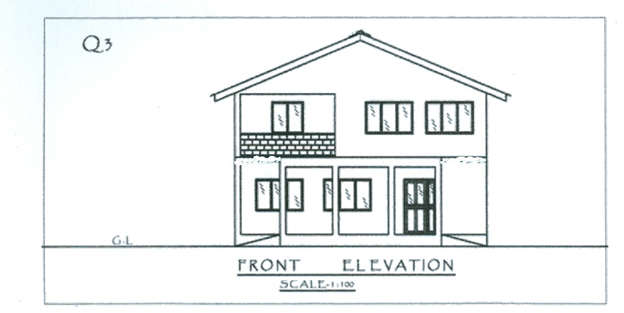

The expected response to question 3 is as given below:
