building construction Paper 3 WASSCE (PC 2ND), 2019




Question 2

To a scale of 1:100, draw the detailed floor plan of the building.

Observation





They performed well by:

- laying-out properly wall lines at corners and junction

- labelling the various rooms spaces on the floor plan;

- using symbols to showthe position of doors and wardrobe.



However, some of them failed to:


- to dimension the floor plan;
- partition the windows into bays;
- indicate the drawing title and scale.

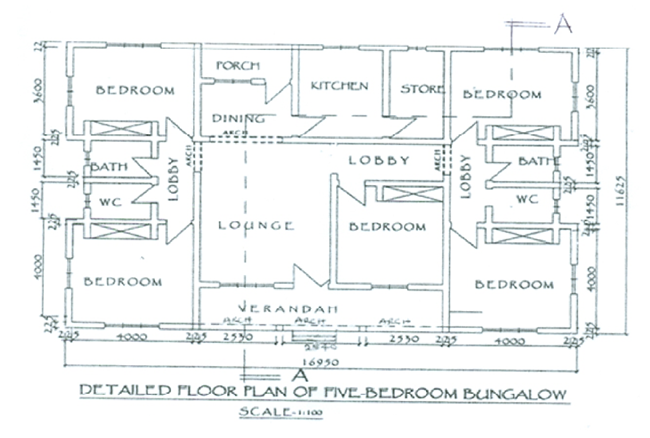

The expected response to  question 2 is as given below:
