building construction Paper 3 WASSCE (PC 2ND), 2019




Question 4

Prepare a door and window schedules, using a scale of 1:20.

Observation





Some of them did well by:

- providing the apropriate material discription of the varoius doors and windows;

- using conventional symbols .to represent doors and windows.



The majority of the candidates that attempted this questions failed to:


- prepare the schedule in accordance to the conventional format;;
- produce the doors and window sketches by using the scale specified;
- indicate the quantity of each doors and windows type;
- state the size of each doors and windows type.
The expected response to  question 4 is as given below:

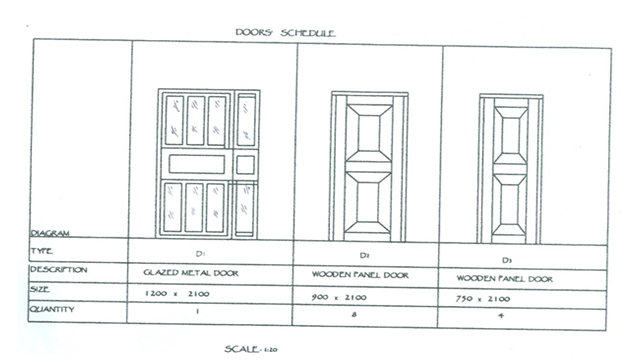

DOOR SCHEDULE front elevation;

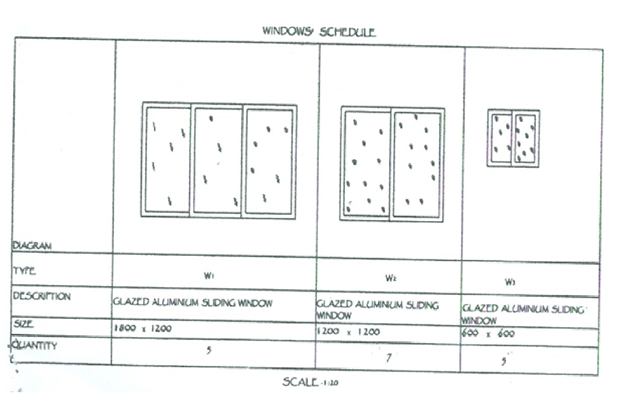

WINDOW SCHEDULEright-side elevation.
