building construction Paper 3 WASSCE (PC 2ND), 2019




Question 3

Draw to a scale of 1:100, the following views of the building:

  1. front elevation;
  2. right-side elevation.

Observation





The candidates did well by;

- showing correctly the locations of doors and windows;

- indicating the entrance door threadshold steps;

- showing the roof eaves projection over the walls as specified.



However some of the candidates failed to:


- distinguish the ground level from the floor level;
- show the recessed wall on the right-side elevation;
- costruct geometrically, the semi-circular arches at the verandah.
The expected response to  question 3 is as given below:

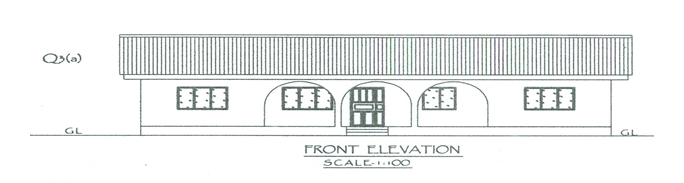

3(a) front elevation;

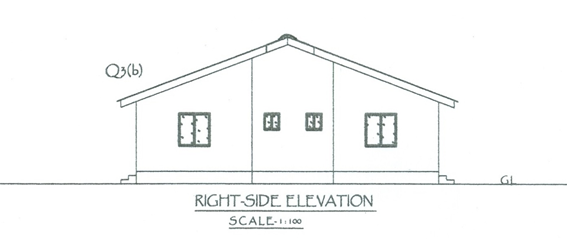

3(b)right-side elevation.
