Question 2
-
(b) Advantages of full-wave bridge rectifier
- Better ripple factor
- No centre-tap transformer is required
- Much smaller transformer is required
- Suitable for high voltage applications
- It has less Power/PlY rating per diode

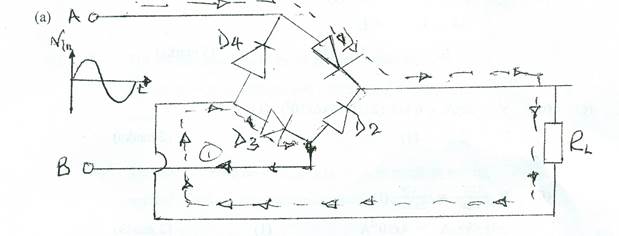

The fundamental requirement in this question is the understanding of the fact that semiconductor rectifier diodes conduct only when positively biased. For the bridge rectifier therefore, only one pair of diodes will conduct in one half cycle of the sinusoidal varying input signal, whilst the second pair will conduct in the other half. It is important though to be able to identify which pair will conduct in which half cycle of the input signal as shown above.
Observation
The expected answers were:
(a). Kirchhoff’s Current Law
It states that the algebraic sum of current flowing in or out of a junction (node) in a circuit is zero.
OR
Sum of current flowing in and out of a junction in a circuit is zero.
(b). 11 + 15 + 16 – 13 – 14 – 12 = 0
10 + 4 + 2 – 5 – 8 – 12 = 0
16 – 13 = 12
12 = 3A.
(c). (i) V = 2mA x 6kΩ (2 x 10-3 x 6 x 103)
V = 12V
.
(ii)
I1 = 4mA = 4 x 10-3A
(iii)IT = 2mA + 4mA
= 6mA.
Although quite a few number candidates responded correctly (some scoring full marks obtainable) to this while some made the mistake of stating that “sum of currents into the node is zero”.
