Basic Electronics Paper 2,Nov/Dec 2015

Question 3

  1.


    (a) Draw and label the circuit symbol of the following devices:

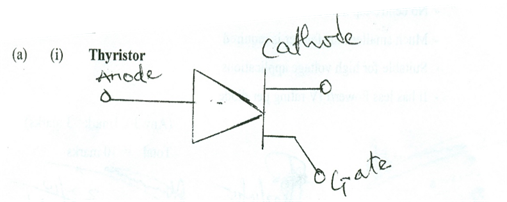

    (i) thyristor;

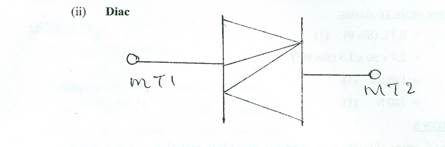

    (ii) diac.
    (b) Describe the switching operation for each of the devices in 3(a).



Observation

 The expected answers were:





(b). (i) For the thyristor to turn on its anode is made positive with respect to its cathode
and a trigger pulse is applied to its gate.

(ii) The diac is turned on if either a positive or negative voltage applied to either of the
terminals reaches the breakover value.\



Question 3 is a recall question which can be found in several standard textbooks.
Performance of candidates was very poor.
