Machine WoodWorking 2, WASSCE (SC), 2020

Question 4



Question 4a

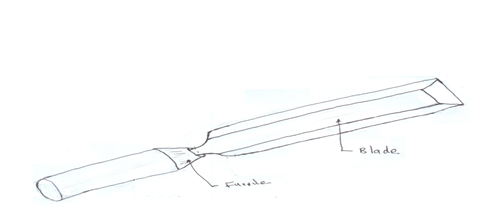

required candidates to sketch a beveled edge chisel and label the following parts: shoulder and ferrule

Question 4b

required candidates to state two reasons why dust extractors are installed in the workshop





Observation



(4A)

.



.

(4B)

Reasons for installing dust extractor in a workshop:

      • Keep the workshop floor clean
      • Improve the air quality in the workshop
      • Suck wood dust particles out of the workshop
