Question 5

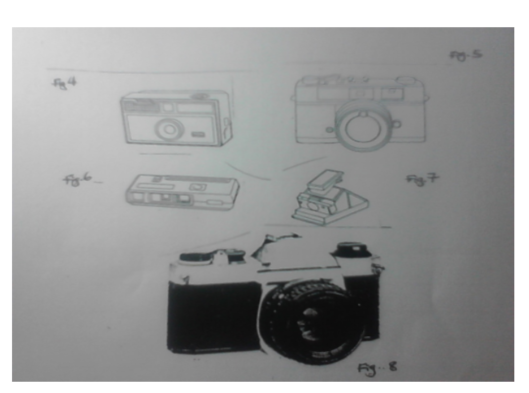

(a)(i) Fig. 4;
(ii) Fig. 5;
- Fig. 6;
- Fig. 7;
- Fig. 8.

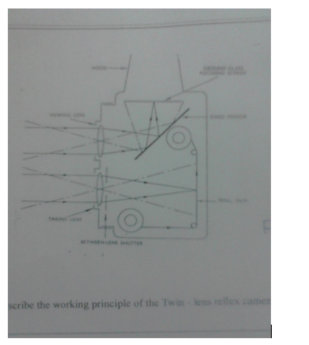

Use Figure 9 to describe the working principle of the Twin-lens reflex camera.
Observation
The question was avoided by many candidates. Candidates performance was poor. The candidates were expected to provide the following answers in order to score good marks:
(a) Fig. 4 - Box/instamatic
Fig. 5 - Range finder
Fig. 6 - Pocket Camera/Miniature Format Camera/110 Film Camera
Fig. 7 - Polaroid Land Camera/Instant Camera
Fig. 8 - 35 mm/SLR
(b) - It has two lenses;
- the upper lens is for viewing and focusing;
- the lower lens (taking lens) is used for taking the photograph;
- the image carrying light strikes the fixed mirror through the viewing lens;
- the image is reflected to the ground glass focusing screen;
- the photographer focuses until sharpness is obtained;
- aperture and shutter speed are set;
- the shutter opens to allow the image forming light to expose the film.
