Radio,Television And Electronic Paper 2, WASSCE (SC), 2018

Question 3.



  1. Define electric power.
  2. A 4kW microwave is operated by connecting it to 240V mains. Calculate:

(i)         its resistance;
(ii)        the current drawn from the mains.

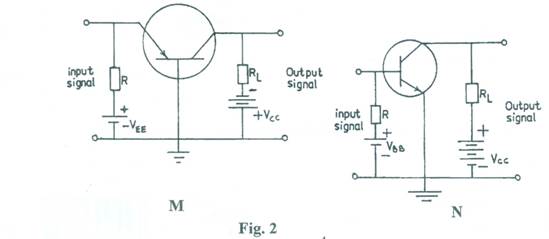

(c)  In Fig. 2, M and N are transistor amplifier circuit diagrams.


Use Fig. 2 to complete Table 2.
Table 2



M

N

Configuration





Type of transistor





Function of Vcc







Observation

The expected answers were:

(a) Electric power is the time rate of doing work/dissipating energy in electric circuit.




Where I = current,
V = voltage and
R =  resistance.
(b)        (i)

                   OR
        OR
R = 14.4Ω
(ii)             OR
       OR
I = 16.67A
(c)                                                                    Table 2



M

N

Configuration

Common base

Common emitter

Type of transistor

PNP

NPN

Function of Vcc

Supplies reverse bias voltage

Supplies reverse bias voltage



It was reported that majority of the candidates who attempted Question 3 responded well.
