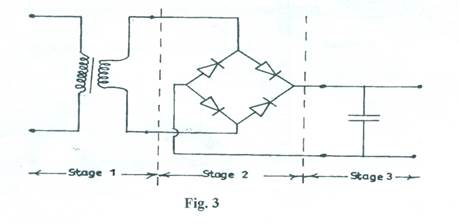

    Fig. 3 is a circuit diagram of a power supply unit showing only three stages.





                (a)        Use Fig. 3 to complete Table 3.


    Stage

    Name of stage

    Function of stage

    One component identified

    Sketch of output waveform

    1.









    2.









    3.









    1. In order to ensure a stable output, Fig. 3 requires an additional stage. Draw the circuit symbol of one component need in the additional stage needed to achieve the output.









Observation

The expected answers were:

  1. The expected responses were:
    (a)                                                                    Table 3


    Stage

    Name of stage

    Function of stage

    One component identified

    Sketch of output waveform

    1.

    Transformer

    -isolates d.c. voltage from mains
    -step down voltage

    transformer

    2.

    Rectifier

    Converts a.c. to d.c./rectification

    Diode

    3.

    Filter

    Smoothens/remove ripples from d.c./filtering

    capacitor

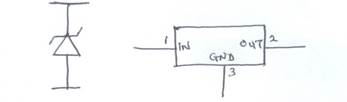

    (b)      Circuit symbol of additional stage
    Zener diode                 I.C. regulator

    It was reported that majority of the candidates who attempted Question 4 responded very well.
