Technical Drawing Paper 2, May/June 2009
Questions: 1 2 3 4 5 6 7 8 9 10 Section B Main
General Comments
Weakness/Remedies
Strength






Question 10

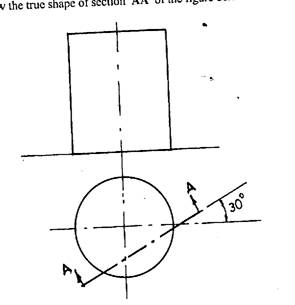

:   Draw the true shape of section AA of the figure below.

_____________________________________________________________________________________________________
Observation

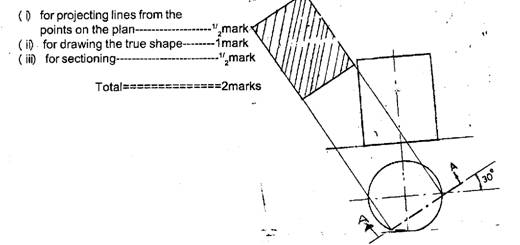

The required solution is obtained by projecting lines parallel to A-A from the plane to the front elevation.  The dimensions on the front elevation are transferred to the projected lines. The true shape of the cut surface AA hatched as shown below
