Technical Drawing Paper 2, May/June 2009
Questions: 1 2 3 4 5 6 7 8 9 10 Section B Main
General Comments
Weakness/Remedies
Strength






Question 2

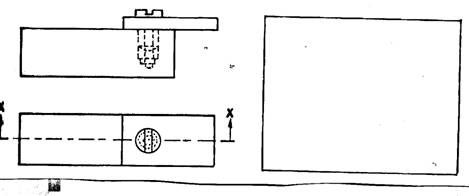

The elevation and plan of a bracket are shown below.  Sketch the
                      Sectional elevation on X – X in the space provided.


_____________________________________________________________________________________________________
Observation

Candidates were expected to visualize the object given in orthographic and imagine a cutting plane xx through it as shown.  Using suitable convention for representing cutting surfaces, they are then expected to draw the view obtained in the box provided.

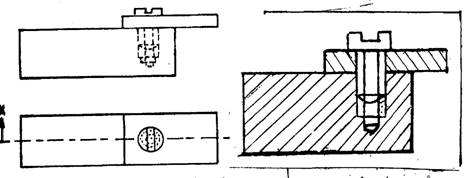

The expected solution is shown below.
