Technical Drawing Paper 2, Nov/Dec. 2009
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 1

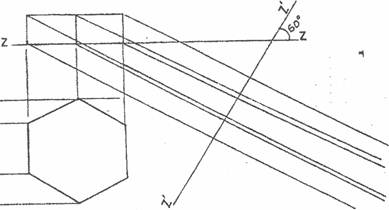

Complete the auxiliary plan of the hexagonal prism shown below.



_____________________________________________________________________________________________________
Observation

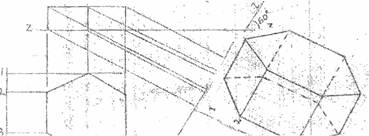

Candidates were expected to take suitable measurements from the end elevation and replicate same on the lines. The solution is shown below
