Technical Drawing Paper 2, Nov/Dec. 2009
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 10

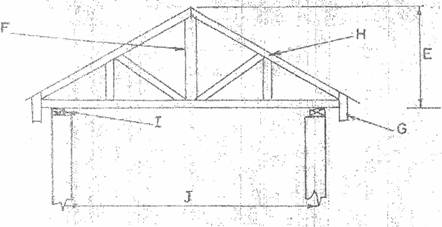

Identify the building parts labelled E - J below ..



_____________________________________________________________________________________________________
Observation

The parts are E - Rise, F - Kingpost, G - Fascia board, H - rafter, I - wall plate and J - span. Most candidates got the answers.
