Technical Drawing Paper 2, May/June. 2012
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies

Question 1B

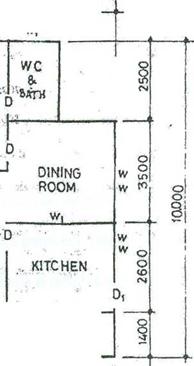

Q1 The figure below shows the sketch plan of a bungalow. Study the specifications and answer the question that follow










SPECIFICATIONS
FOUNDATION: 800 X 225 Strip at 700 below ground level.
WALLS:                              all wails are 225 sandcrete, hollow blocks with 13 mortar
rendering on both sides.
FLOOR:                             300 hardcore; 150 concrete slab; 25 mortar screed;
Finished floor to ceiling 3000.
DOORS                             DD 2100 x 1800 x 38 panel wooden in 100 x   50   timber frame;
D - 2100 x 900 x 38 flush wooden in 100 x 50 timber frame;
Di - 2100 X 900 X 38 fabricated metal in 100 x 50 metal frame;
WINDOWS:                       all windows are glass Louvre in 100 x 50 timber frame;
W          1200x700;
Wi         800x500.
LINTEL:                              225 x 225 reinforced concrete.
VERANDAH:                     metal balustrade: 1100 high.
ROOF:                               gable with corrugated aluminium sheets;
pitch angle 15°; eaves projection 300; timber rafter 150 x 50 at 1000 centres; purlins 750 x 50 at 900 centres; ceiling joist 50 x 50 at 600 centres.
(Assume suitable dimension where necessary.)

  1. Draw, to a scale of 1:100, the
  2. Plan,
  3. front elevation.

  1. Draw to a scale 1:50, the sectional elevation on pp
  2. Indicate the following parts on    the                   section
  3. wall plate
  4. ceiling joist
  5. floor finish
  6. foundation footing.











Observation

  1. Candidates were expected to:

Sketch the listed symbols correctly in the space provided.
The solution is shown below.

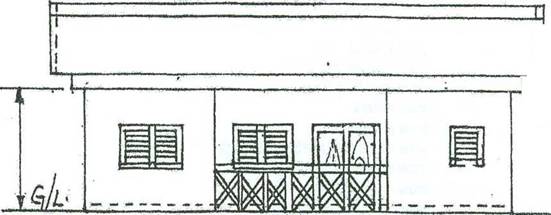

  1. draw to scale 1:100;
  2. draw the floor level;
  3. draw 1 single window;
  4. draw 1 double door;
  5. draw vertical walls;
  6. draw the roof, hand rail;
  7. write front Elevation.

The solution is shown below


3000

/3>, ooo
E25TEE


Candidates were expected to:

(i)

drawing to scale 1:50

(ii)

draw 4 foundation footings/walls

(iii)

draw earth filling

(iv)

draw the hard core

(V)

draw the ground line (GL)

(Vi)

draw the concrete floor slab

(vii)

draw the screed

(viii)

draw 4 walls in section

(ix)

draw one window in section

(x)

draw 2 lintels

(xi)

draw beam

(xii)

draw 5 doors (1 in section)

(xiii)

draw a vertical line representing wall

(xiv)

draw 2 facial boards

(XV)

draw 2 eaves projection

(xvi)

struts and king post

(xvii)

draw rafters

(xviii)

draw purlins

(xix)

draw roof cover at 15° pitch angle

(XX)

draw ridge cap

(xxi)

draw 4 wall plates

(xxii)

draw ceilings and noggins

(xxiii)

write SECTION P-P

Indicate the following:

(i)

wall plate

(ii)

ceiling joist

(iii)

floor finish

(iv)

foundation footing

The solution is shown below
