Question 10



Sketch the symbol for representing the underlisted items in the spaces provided,

(i)Internal thread,

(ii) Knurling,

(iii) Interrupted view,

(iv) Bearing shaft.











Observation

  1. Candidates were expected to:

Sketch the listed symbols correctly in the space provided.

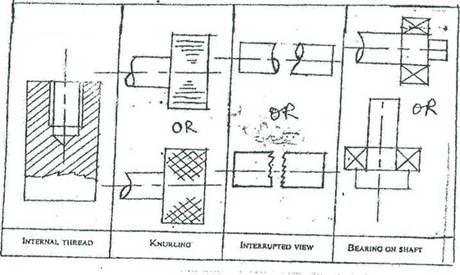

The solution is shown below.
