Technical Drawing Paper 2, May/June. 2012
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 4

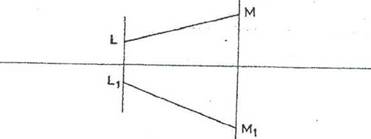

Use auxiliary projection method to find the true length of the line LM below and indicate the true angle of inclination to the horizontal plane.












Observation

  1. Candidates were expected to

    1. find the true length and angle of inclination using auxiliary projection method
    2. draw the projection correctly.
