Technical Drawing 3, WASSCE (PC), 2020

Question 1

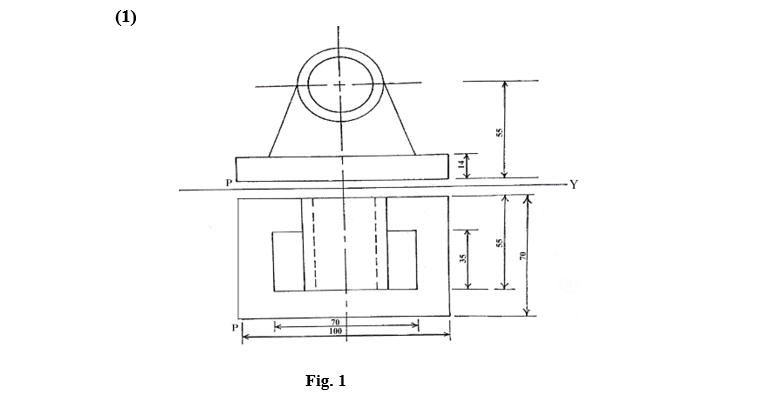

Figure 1 shows two views of a casting. Sketch, approximately full size, the isometric view of the casting. Make P the lowest point.

Observation

Candidates’ responses to this question were very satisfactory.
