Technical Drawing 3, WASSCE (PC), 2020

Question 5

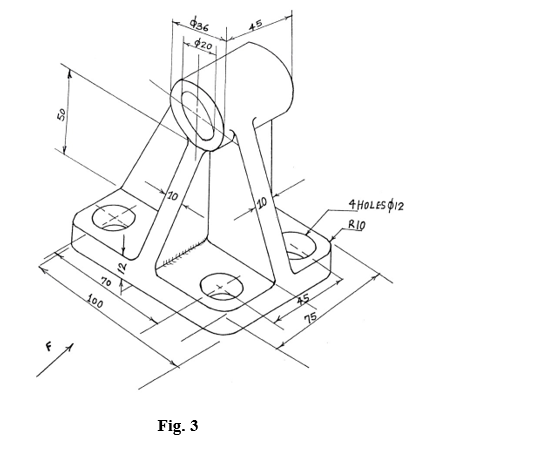

Fig. 3 shows a cast iron bracket. Draw, full size and in first angle projection, the:

(a) front elevation in the direction F;

(b) plan;

(c) right end elevation.

Observation


Candidates’ responses to this question were very good. However, some candidates could not satisfactorily draw the front elevation in the direction of arrow F, as asked for in (a). The solution to entire question and the demands in the poorly part of the question are given below.

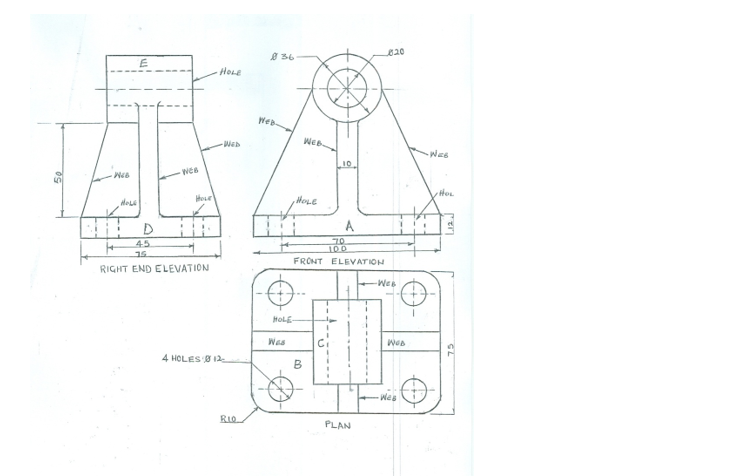

FRONT ELEVATION IN THE DIRECTION OF ARROW F: REQUIREMENT

    Drawing in first angle projection

  • Drawing full size

  • Drawing the outline

  • Drawing 4-centre lines

  • Drawing face A

  • Drawing 2-hidden holes

  • Drawing 3-webs

  • Drawing 2-circles

  • Neatness and quality of lines

  •
