Question 1
  1. Sketch and label the circuit symbol for each of the following devices:
    1. n- channel junction field effect transistor;
    2. thyristor;
    3. triac.
  2.   State one application each of the devices in (a).
_____________________________________________________________________________________________________
OBSERVATION

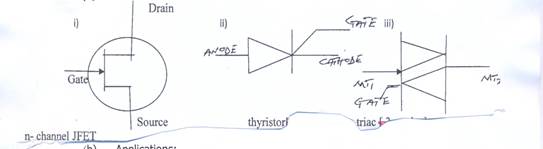

The expected answers were:
          (a)



(b)      Applications:

          (i)      n-channel                            (ii)      Thyristor                (iii)     Triac
                   -  Input amplifier                          -  power control               -  Relay control
                   -  Logic circuits                              device                               -  Motor control
                    -  Large scale integration          - Switch control                -  Phase control
                                                                                                                        -  Inverters
                                                                                                                        -  Heater control
                                                                                                                        -  Static switches

The question was on Semiconductor Devices. It was quite popular with the candidates. The performance was very good.
