Question 2

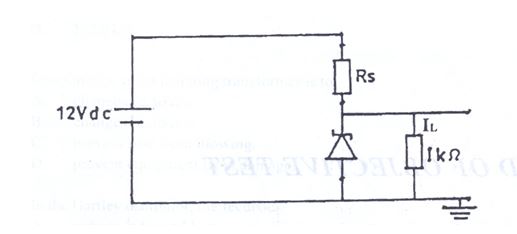

In Figure 4, a 5 V stabilized power supply is required from a 12 V d.c. input source. If the maximum power rating of the zener diode is 2 W, calculate the:

  1. maximum current flowing in the zener diode;
  2. load current, IL;
  3. value of the series resistor, RS.



_____________________________________________________________________________________________________
OBSERVATION

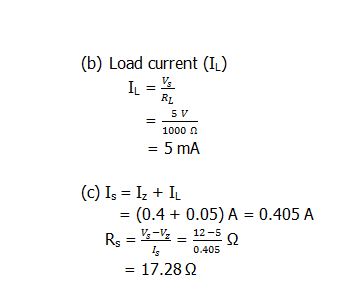

  The expected answers were:

  1.  Maximum current flowing in the Zener diode is given by



The question was on Power Supply. The question was very unpopular with the candidates.  The performance was poor.
