Question 1

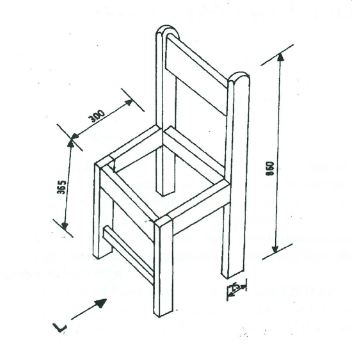

Use the diagram of a dining chair shown below to answer question 11.
(a) Make a freehand pictorial sketch of the dining chair.
(b) To a scale of 1:5, draw in first angle orthographic projection, the following views of the dining chair:
(a) front elevation;
(b) side elevation.
Observation
Candidates were expected to:

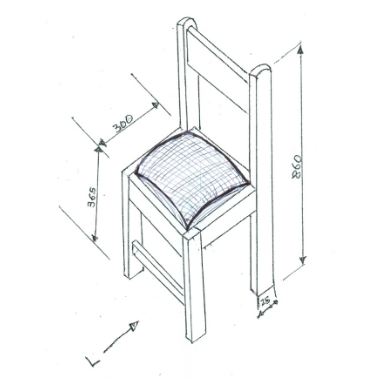

(i) make freehand pictorial sketch of the dining chair.

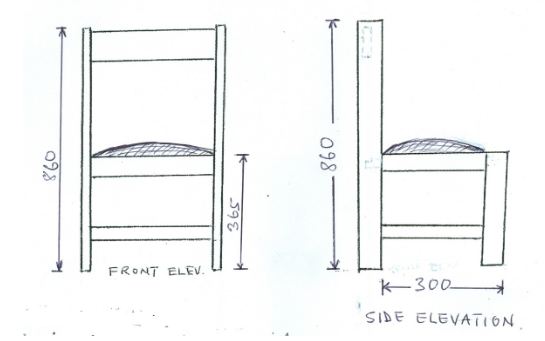

(ii) draw in first angle orthographic projection showing the front elevation of the chair and the side elevation of the chair.
The solutions are shown below.
(a)
(b)
