Plumbing and Pipe Fitting 3, May/June 2015

Question 3

Question 3 The following materials have been provided for this exercise:

(a) two 25mm PVC tee;

(b) two 25mm PVC elbow;

(c) two 25mm PVC plug;

(d) one 25mm PVC union connector;

(e) one 25mm PVC pipe 1400mm long x 25mm diameter.

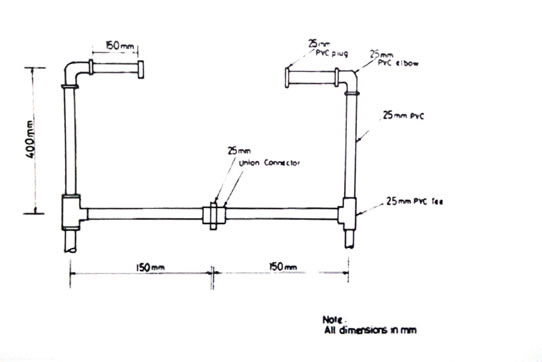

Using a push fit method, form the required shape in the diagram below


Very few of the candidates attempted this question.  Candidates’ poor performance could be attributed to lack of trained personnel to prepare the working template for the practical examinations.
