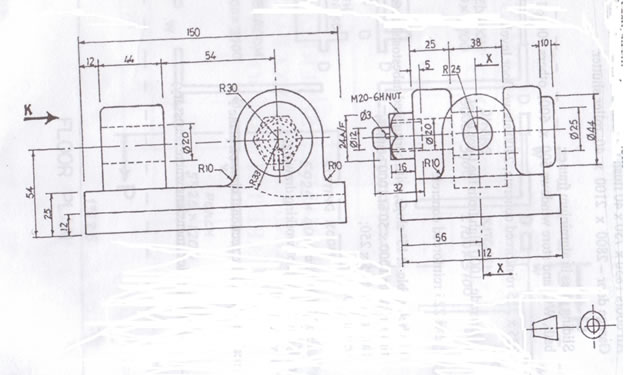

The figure below shows two views of a block.  Draw in first angle projection the:

1. sectional front elevation on plane XX;



1. end elevation in the direction of arrow K;

1. plan.

(Note: Hidden details are not required in any of the views).

(Note: Assume suitable dimensions where necessary)

1. Sectional Front elevation on plane X-X




Candidates were expected to:

1. draw in first angle projection;
2. draw full size;
3. draw the outline
4. draw centre lines (2);
5. draw the base (K);
6. draw the circle (Ø20);
7. draw the semi circle (R30);
8. draw face (J);
9. draw face (l)
10. draw the horizontal Hole (Ø20);
11. draw the fillets (2);
12. section K & L;
13. for writing sectional front elevation X-X.



1. End elevation in the direction of arrow K

Candidates were expected to:

1. draw in first angle projection;
2. draw full size;
3. draw the outline;
4. draw centre lines (3);
5. draw the base (K);
6. draw the circle (Ø20);
7. draw the semi circle (R25);
8. draw circle (Ø20);
9. draw face (J);
10. draw the bolt head;
11. draw faces L & M;
12. draw fillets (2);
13. draw the nut;
14. draw the pin(Ø3);
15. draw bolt end;
16. write end elevation.



1. The plan



Candidates were expected to:

1. draw in first angle projection;
2. draw full size;
3. draw the outline;
4. draw centre lines (2);
5. draw face (J);
6. draw faces (K & L);
7. draw faces (M & N);
8. draw face (P);
9. draw bolt head;
10. draw bolt ;
11. draw the nut;
12. draw bolt end;
13. write end plan;
14. draw neatly.

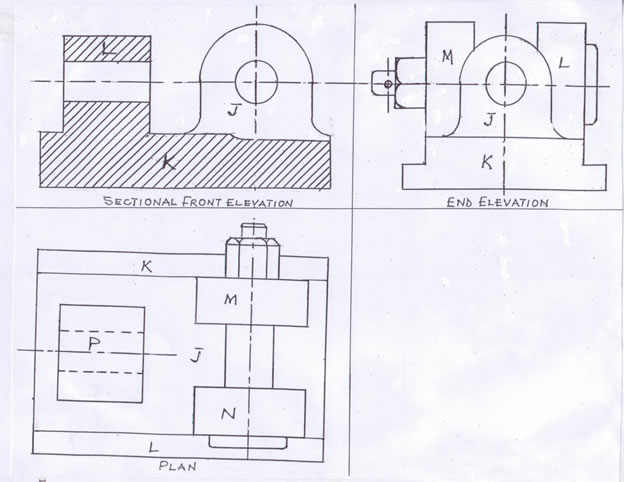

The solution is shown below:
