Basic Electricity Paper 2 , May/June 2014
Questions:   1 2 3 4 5 6 7   Main
General Comments
Weakness/Remedies
Strength





















Question 3
  1. Draw and label the circuit diagram of 2 two-way switches controlling two lamps in parallel.
  2. State the function of the following accessories:

(i)         switch;
(ii)        fuse.

_____________________________________________________________________________________________________
Observation

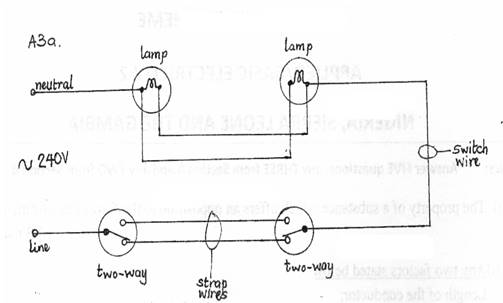

The expected answers were:
               (a)



















(b)(i)  Switch – used to open and close electric circuit
                        (ii)  Fuse – blow or open the circuit automatically when there is an overload etc.

      The question was on Electrical Wiring. It was unpopular with the candidates.
      Many of the candidates that attempted this question did not use correct symbols
      for the accessories and could not draw the diagram correctly.
      The candidates’ performance was poor.
