Question 7
  1. Sketch the sine waves of two voltages V1 and V2 with V1 lagging V2.
  2. The waveform of a voltage has a peak value of  4.0 kV.  Calculate the:

(i)    average value;

(ii)   rms value of the voltage
_____________________________________________________________________________________________________
Observation

The expected answers were:

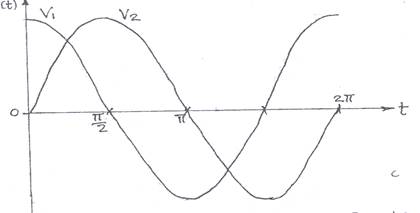

                        (a)



                         (b)       (i)         average value = 0.637 x peak value
                                                                       = 0.637 x 4 x 103 = 2.55 kV
                                    (ii)        r.m.s. value = 0.707 x peak value

                                                                    = 0.707 x 4 x 103 = 2.83 kV

The question was on Alternating Current Circuit Theory. Many candidates who attempted this question performed very well.  The performance was reported good.
