Question 5
  1. Sketch the load characteristics of a:

(i)         shunt generator;
(ii)        series generator.

  1. A shunt generator of field resistance of 45 Ω supplies 90 A at 230 V.

(i)         Draw the circuit diagram.
(ii)        Calculate the field current.

_____________________________________________________________________________________________________
Observation

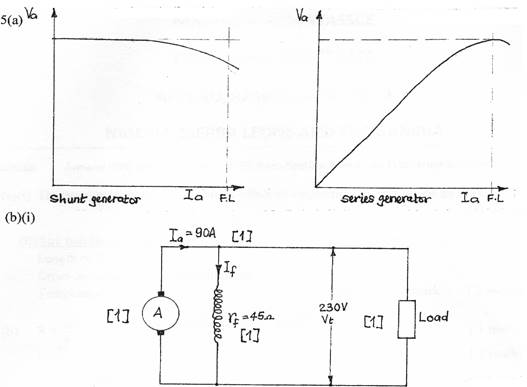

The expected answers were:


                             (ii) Field current, If =
                                    If  =



If = 5.11 A

The question was on Electrical Machines. The question was well attempted by the candidates. Many candidates who attempted this question could not sketch the load characteristics correctly, however, few of the those who attempted it got the circuit diagram and the value of the field  current correct.
