Building Construction Paper 1,Nov/Dec. 2009
Questions:   1 2 3 4   Main
General Comments
Weakness/Remedies
Strength
Specifications













Question 2

To a scale of 1:100, reproduce the plan of the building.


_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

-           lay out the corners of both the internal and external walls correctly;
-           locate the various room spaces correctly;
-           use the specified scale for the floor plan.

However, few of them failed to:

-           label the room spaces on plan;
-           use the appropriate symbols for doors and windows;
-           dimension the location of the arches and sectional line Y – Y.

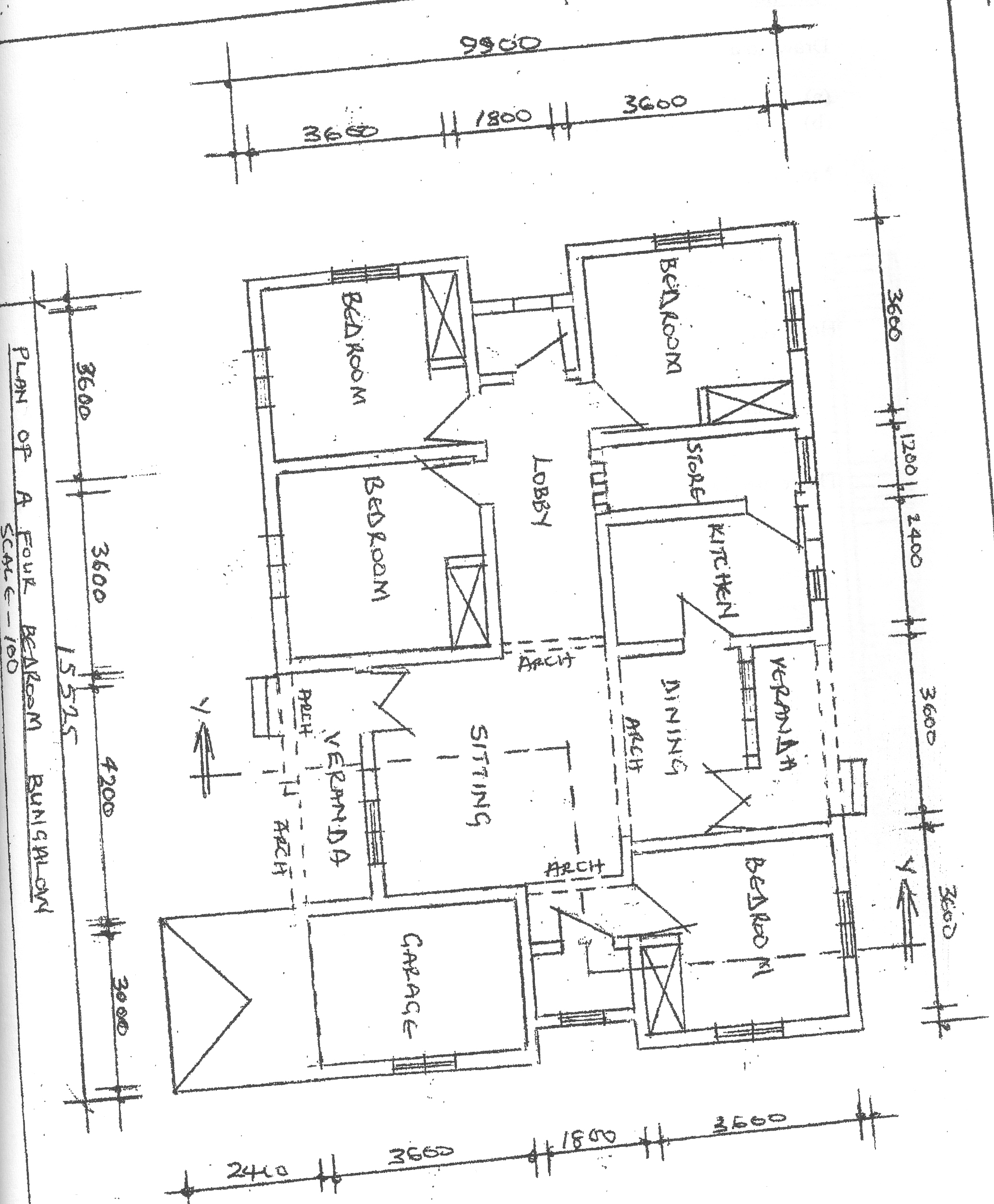

The detailed plan of the building is as shown on the next page.
