Building Construction Paper 1, May/June. 2012
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies
Specification
Question 1

To a scale of 1:50, draw a detailed section A - A of the building from the foundation to the roof.

_____________________________________________________________________________________________________
Observation


Most candidates were able to show:
ordinary concrete strip foundation;
sandcrete block foundation walls or sub-structural walls;
ground floor construction details;
timber roof (truss) structure.
However, they were unable to:
indicate the natural ground level; show walls in section;
represent correctly, the doors’ and windows’ in elevation.

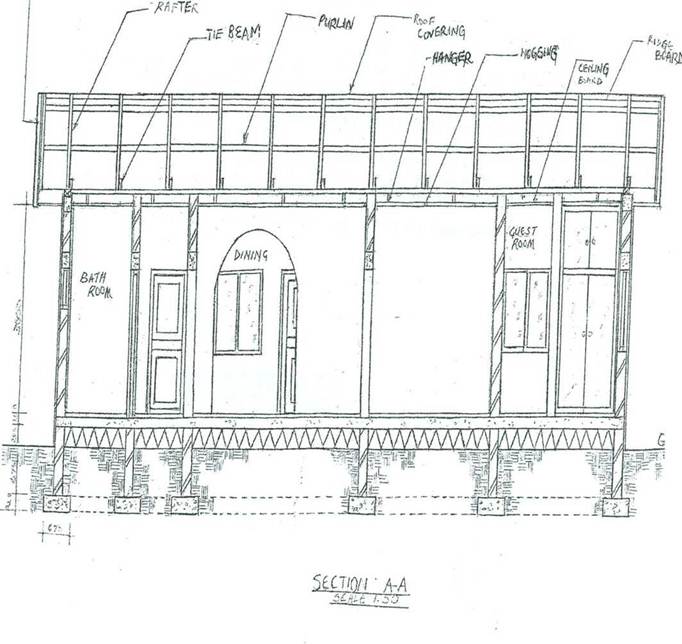

The expected response to question 1 is as shown on the next page.

Beaudingmq121
