Building Construction Paper 1, May/June. 2012
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies
Specification
Question 2

To a scale of 1:50, draw a detailed section A - A of the building from the foundation to the roof.Draw to a scale of 1:100, the detailed floor plan of the building.

_____________________________________________________________________________________________________
Observation

Most candidates were able to:
lay out properly the walls at junctions and corners;
indicate the doors and windows on plan with their conventional symbols;
represent correctly, the ramps to the car park and the wardrobes.
However, some of the candidates failed to show the:
sectional line A - A and B - B on the detailed plan; columns location at the car park and porch; threshold steps to the rear verandah.

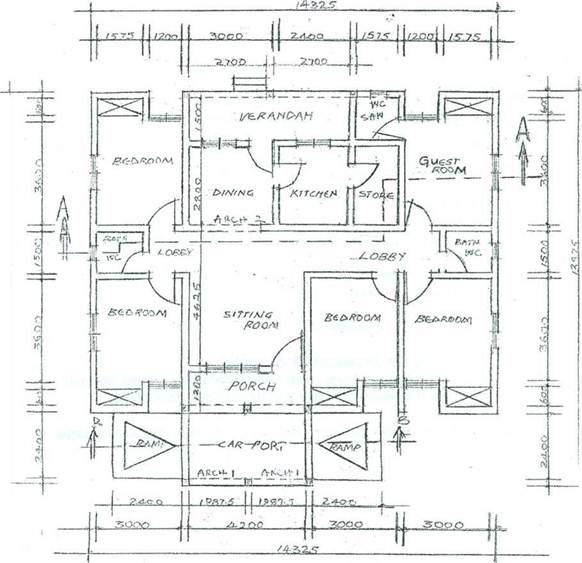

The expected response to question 2 is as shown on the next page.



Beaudingm121q2
